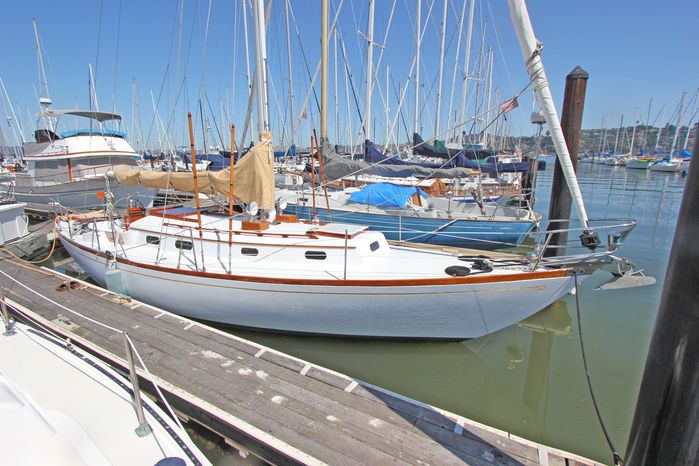

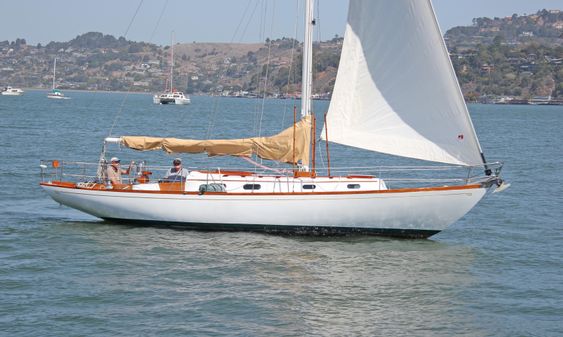

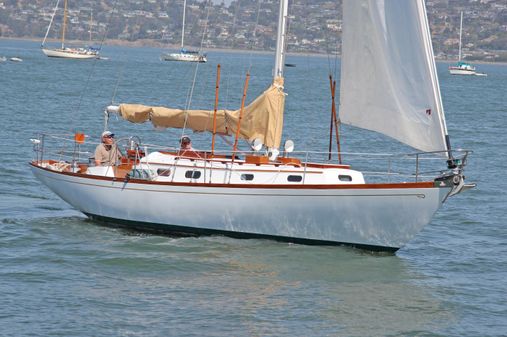

1966 Hinckley Pilot 35 sloop

Sausalito, California


The Hinckley Pilot 35 was an instant classic (her sheer is almost certainly one of the sweetest ever penned), and the ensuing decades have done nothing to lessen her appeal--"Most remarkable for her beauty, the Pilot 35 is a balanced, traditional looking boat with a deeply curved sheer and plenty of overhang fore and aft. She points well and is stable in a blow. The design has been cruised widely and seriously raced as well as of course plenty of the weekending and daysailing that most of of do; it embodies a “dual purpose ideal” that many sailors put at the heart of our sport, and many still see her as the sum and substance of what a boat should be"

That's how Practical Sailor begins their review of the Pilot 35 and how right they are--this S&S design is a classic in the truest sense of the word (see the full article by clicking on FULL SPECS above).

This particular example (hull #3565, originally christened "Pavane" and gas powered/tiller steered) was home-ported n Maine when she was purchased by the current owner and trucked out to California; since then he's kept the boat beautifully and she must be seen to be appreciated today.

Some highlights: beautiful flawless brightwork inside and out, Awlgripped from the deck up in 2022, new canvas in late 2021, new rigging about 10 years ago (at which time the standard winches were replaced with self-tailing), interior cushions before that, repowered in the early 1980s with barely 1,000 hours clocked since (and just serviced in late June 2022), note that this 42 hp Westerbeke is considerable more powerful that the original which was probably about 25 hp.

Also note she's one of only two Pilots currently offered for sale on the west coast (and the other one is wood hulled), and lying in a potentially transferable Sausalito Yacht Harbor slip; there's a long wait to get into this marina so this is a material benefit if you're able to take advantage.

Price just significantly reduced and motivated out of state seller is encouraging offers.


Basic Boat Info

Boat Name: Gunga Din
Make: Hinckley
Model: Pilot 35 sloop
Year: 1966
Condition: Used
Category: Sail
Construction: Fiberglass
Keel Type: Full Keel


Length: 35 ft
Length Overall: 35'9 ft
Waterline Length: 25 ft
Beam: 9'5 ft
Min Draft: 5 ft
Displacement: 13,500 lb
Ballast: 4,200 lb

Engines / Speed

Engines: 1
  • Make: Westerbeke
  • Model: 50
  • Drive Type: Direct
  • Fuel: Diesel
  • Engine Power: 41hp
  • Type: Inboard
  • Propeller Type: 2 Blade, Bronze
  • Year: 1980
  • Engine Hours: 1007
  • Engine Location: Center
Cruising Speed: 6 kn
Maximum Speed: 7 kn


Fuel Tanks: 1
Fuel Tank Capacity: 30 gal
Fuel Tank Material: Stainless Steel
Water Tanks: 1
Water Tank Capacity: 30 gal
Water Tank Material: Stainless Steel
Holding Tank Count: 1
Holding Tank Capacity: 30 gal
Holding Tank Material: Stainless Steel


Heads Count: 1
Drive Type: Direct
Boat Class: Antique and Classics, Daysailers, Racers and Cruisers


Mark Cattell
Marotta Yachts of Sausalito


Marotta Yachts of Sausalito
100 Bay Street
Sausalito, California, US, 94965
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

Accommodations and Layout

V-berth with insert forward followed by head with shower next to port. Continue aft to salon with settee with fold up bulkead mounted dinette port and straight settee starboard. Far aft is full beam galley with sink and stove port, centerline companionway and large icebox (the top of which acts as stand up nav table) starboard.

Note below decks is beautiful satin varnished mahogany with teak & holly sole and white painted overhead and in PERFECT shape throughout with new cushions fit in 2006. 6'1 headroom.

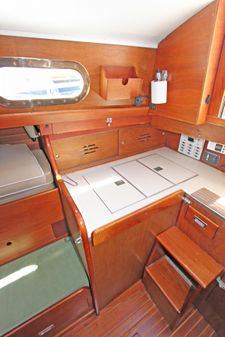

Stainless steel sink with hot/cold pressure water (six gallon hot water heater engine and AC fired), large top loading icebox with stainless steel interior, Force 10 three burner propane stove. Raritan manual pump toilet.


110V AC / 12V DC. Thirty amp shorepower service, two Gp 27 AGM batteries.

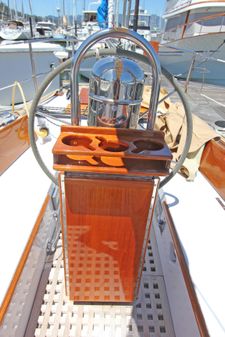

Autohelm autopilot, Raytheon ST60 wind speed/direction indicator, Raytheon ST60 TriData (depth/speed/log), Ritchie magnetic compass at binnacle.

Sails and Rigging

Sloop rig with deck-stepped aluminum mast, aluminum boom with dacron mainsail, boomvang, mainsheet with traveller, 95% jib on Harken roller furler, two Lewmar #43 self tailing winches, two Lewmar #40 self tailing winches.

Deck and Hull

Hand laid FRP hull with end-grain balsa core and external lead modified full keel, fastened with 3/4" Everdur keelbolts. Foam-filled clamshell rudder with satinless steel shaft and blades. Hull color is white with dark blue bootstripe and medium blue bottom paint and beautifully varnished teak trim.

Dodger (not currently installed but in good condition).

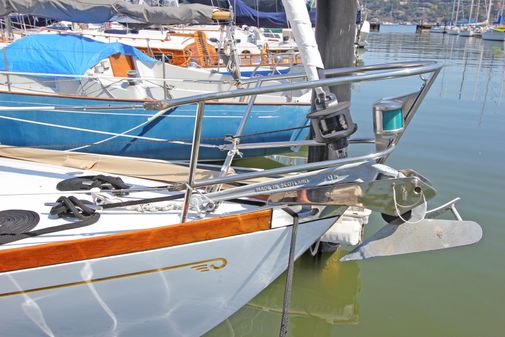

Danforth anchor on custom Hinckley bow fitting with ample chain and line rode.

Engine and Mechanical

Westerbeke 50 naturally aspirated fresh water cooled four cylinder diesel engine installed in the early 1980s with barely 1,000 total hours clocked since, Paragon transmission, wheel steering..

Practical Sailor Review of the Hinckley Pilot 35 (Practical Sailor, July 1, 2001)

Henry R. Hinckley & Co. of Southwest Harbor, Maine, has had some notable successes over the years, and this solid glass 35-footer ranks right up there with the best of them. She was built in several variations between 1963 and 1975 and was preceded by eight boats built in wood. Class records indicate that a total of 125 fiberglass Pilots (including eight built in Chile using tooling made for the Chilean Navy with Hinckley’s assistance) were built in total.

Most remarkable for her beauty, this balanced, traditional-looking boat with a deeply curved sheer and plenty of overhang fore and aft has had a full life. Cruising widely, racing seriously, weekending and daysailing in most of the planet’s best sailing grounds, she embodies that “wholesome, dual purpose ideal” that many sailors put at the heart of the sport.

By modern standards she’s a bit cramped, a tad slow, and a touch clumsy. Hinckley has long been known to build boats well, but “at what price?” Some owners have sailed their boats for 30 years or more, and when a Pilot comes on the used boat market today it’s not likely to stay there long.

Designed by Sparkman & Stephens when the firm was at its most dominant, the Pilot was the state of the boatbuilding art at the beginnings of the fiberglass era. It’s tempting to think of her as dated and a litmus of how far we’ve come, but many sailors still see her as the sum and substance of what a boat should be. Whether you think of her as a relic or exemplar, however, hers is an intriguing tale.

Says Bob Hinckley, one of the founder’s sons and still a company officer (though his family sold the company several years ago): “The success of the Bermuda 40 removed any lingering doubts about the suitability of glass reinforced plastic as a boatbuilding material. By 1962 it was clear that fiberglass was to be the future of the Hinckley company. We had already built a Sou’wester Junior in glass, and since the boat was 30 feet LOA, it seemed only logical to build one in the 35-foot range to fill out the line.

"The two boats which were under consideration were the Hinckley 36 and the Pilot 35. Both had been popular cruising boats in wood during the 1950s, and each had its own strengths. Of the two the Pilot was probably a little bit prettier and faster, but her freeboard was very low. Gilbert Cigal, who had played such an active role in the development of the Bermuda 40, favored the Pilot and his opinion was valued by my father.The decision was made to have Sparkman & Stephens modify the lines of the hull to give her more freeboard and otherwise facilitate her construction in glass. They are wonderful boats. I owned one for 10 years myself. When I see one, even after all of these years, I’m still moved by how pretty she is.”

Rod Stephens wrote a design history of the boat in 1983 on the occasion of the 20th anniversary of her launch: “S&S Design No. 539 was one of our first yacht designs prepared after World War II. The dimensions were 32’11" LOA, 24' DWL, 9’6" Beam, 4' 9" draft. Sail area was 523 sq. ft. The design displacement was 11,970 lbs. The first boats were constructed (in wood) by Fisher Boatworks in Detroit and later by Thomas Knutson Shipbuilding in Huntington, NY.

“In 1955 at the request of Henry R. Hinckley, a ‘new Pilot’ was the subject of our Design No. 1219. The new boats were slightly longer on deck and at the waterline and drew an additional 2 inches. Beam remained 9’6" and six square feet of sail area were added. “Hinckley built eight of these ‘Hinckley Pilots’ in wood. One was a yawl, the rest were sloops. They displaced 12,900 lbs.

“In 1962, again at the request of Hinckley, who had been building in fiberglass, the Pilot design was revised and became our Design No. 1727. The design was extended to LOA 35' 9", DWL 25', Beam 9’6", Draft 5’0", Sail area 554 sq. ft. and Displacement 13,500 lbs.

“It was this design that became known as the Hinckley Pilot 35 built exclusively by Henry R. Hinckley & Co. Of the 117 fiberglass Pilots built in Maine, 25 were yawls.”

While Bob Hinckley remembers the final redesign as “essentially adding another strake to the hull to give her some more freeboard to make her drier and roomier,” there was more to it than that. Says Bruce Johnson, currently Chief Designer at S&S: “The boat was worked up when Aage Nielsen was with the firm, and between Aage, Olin, and Rod a beautiful boat was drawn which has maintained its superstar status to this day.”

The Pilot is very good looking. If there’s a comment that echoes repeatedly from her owners it’s “everyone says she’s the prettiest boat in the harbor.” Her design team combined a boldly curved sheerline, drawn-out ends, a jaunty aft-raked transom, and a straight but not severe houseline into a traditionally eye-pleasing package. She comes from a bygone era and her looks suggest the good old days “when boats were boats.” She has some other timeless virtues, too and many owners and sailors in general appreciate her for her simplicity, integrity, anddurability.

However, sailboat design has progressed in the more than 50 years since the Pilot was born. She is short on the waterline. This limits both her top-end speed and her payload. She has a full keel with its attendant overabundance of wetted surface and lift/drag inefficiencies. She has a short rig which makes her less than jazzy to sail in light air. Her keel-hung rudder makes her turning circle inconveniently wide. Sail controls are elementary.

Conventional wisdom has it that fewer than one in ten sailboats today ever sees the race course. Such was not the case with the Hinckley Pilot. Block Island, Mackinaw, Monhegan, Annapolis-Newport, the Great Ocean Race Race— Pilots have been in them all and done well. They have also scored well or won championships in handicap series in San Francisco, Buzzards, and Biscayne Bays. Overall, the ratio of Pilot owners who report having raced their boats is much closer to one in three than one in ten.

One of the pillars of Sparkman & Stephens’ racing success has always been an emphasis on upwind performance. The Pilot 35 is no exception. Despite overlong spreaders and over-wide sheeting angles that were standard design elements in her era, she goes well to windward.

To some, a Pilot 35 may seem tender, especially compared to modern boats with more beam, form stability, and deeper ballast. “They heel fairly fast initially,” says one sailor, “but if you keep the angle of heel under 20 degrees she’ll stay very lively and make very little leeway. She’s a real lady to sail when it starts to blow.”

“I’ve always favored the sail combinations that the yawl rig makes available,” says another owner. “Also, as a CCA measurer I was not unaware of the rating advantage of the yawl rig. I could often sail with the sloops but enjoy a foot better allowance.”

Sloop and yawl, however, the boats have compiled an enviable record. As boats and owners have grown older, however, and racing has evolved, fewer and fewer Pilots now make it to the starting line.

Though her relatively low freeboard can invite the occasional wave aboard, her ends are full and she is acceptably dry in most conditions. Her short waterline combines with long overhangs to make her hobby horse, however. Thanks to her long keel, though, her motion is gradual— nothing like the snap-roll that some fin-keelers can be guilty of. “She’s a substantial boat that’s comfortable in a seaway,” an owner concludes.

“What I’ve come to appreciate most about my boat in the more than 30 years that I’ve had her is her size,” an owner from Maine reports. “She's big enough to be comfortable but small enough so that the loads never get to be overpowering. One man can do just about everything. When I'm trying to shoehorn into the head I want a bigger boat, but when it comes to sailing, I like the Pilot the way she is.”

Almost to a man Pilot owners will tell you how badly she steers in reverse under power. “She certainly doesn’t go straight. It’s a case of learning your boat and adjusting.” The boats were originally equipped with Sea Scout or Atomic Four gas engines. Well over half of today’s owners have replaced those gas engines with diesels, the Westerbeke 4-99 supplied by Hinckley being the most common.

Says one owner with a Westerbeke fitted with a three-bladed prop, “The engine is big enough so that we get up to cruising speed of 6 knots or better at less than 2000 rpm. It’s nice to have reserve power and to get where you’re going without any more noise or fuss than necessary.”

Engine access on the Pilot has always been an annoyance.

Most owners think their Pilots are very well-built. In fact, not a single one (from our modest sample of over 20) gave their boats anything less than highest marks in the “construction’ category. Writes Don Danilek, compiler of the Pilot 35 Yearbook, “The Pilot’s construction, like her design, is legendary. From the faired stemplate with its integral chocks and tack fitting to the integral flagstaff as part of the stainless stern pulpit, the Pilot is the epitome of quality construction.” In reality, no one really knew what “the epitome of fiberglass construction” was in the pioneering days that produced the first Pilots. Therefore, they were overbuilt. The hull laminate in the way of her keel was up to an inch thick. Nowhere is her solid glass hull less than 3/8" thick. Her two hull halves (she was built in a clam-shell mold due to worries that her slight amount of tumblehome might make her difficult to release from a standard one-piece mold) are taped over with layers of matt and roving that make stem and stern virtually bulletproof. Bob Hinckley recalls a Pilot being dropped from a TraveLift six feet onto her stem. “Creased the gelcoat for about a quarter of an inch around the impact spot,” he remembers.

Her 4200 pound lead keel was attached with 3/4” Everdur bolts. The hull and deck on the Pilots were joined using the system Hinckley employed on all of its boats: The deck was bedded on wet mat laid on a 6-inch wide inward flange on the hull. Screwed in place while the chemical bond set up, it was then capped with a toerail bolted through both flange and deck. “The method pretty well removes the problem of deck leaks,” Hinckley says. “All you might get is problems in the way of the chainplates or the stanchions, but we bed them very well, too.”

Interior wood was equally robust, right down to the inch-thick treads of the teak and holly cabin sole. Extra fiberglass reinforcement went into the chainplates and in longitudinal stringers designed to stiffen the hull fore and aft. “When we first worked on our boat,” says Danilek, “my wife Jane remarked, ‘On this boat, when I lean on something, it leans back.’”

At a displacement of 13,500 pounds, the Pilot pays some performance penalty for being so strongly built. Many of today’s 35-footers not only afford more waterline and room but weigh in at from 3000 to 6000 pounds less. The lighter the boat, the less “dead weight” there is to subtract from performance. Also, in reckoning the cost of a boat you’ve got to figure on the cost of the materials that went into her. Heavier boats cost more for that reason.

Still, it’s hard to argue with Hinckley’s success. One owner discovered mild blistering after 15 years. Another felt that the mast column did not provide enough support for her deck -stepped mast. Aside from those criticisms we gathered a raft of comments like: “Absolutely NO failure of rig or gear in 15 years!” “The gelcoat still looks good after 23 years.” “We’ve never had any problem getting insurance because she’s so well built.” “A boat for a lifetime. Hull/deck joint, standing rigging… all top drawer.” It’s certainly possible to use materials more efficiently and produce sprightlier boats, but Hinckley’s conservative brand of over-building has produced boats that have consistently proven durable as well as capable through the years.

Pilots have been built with 4, 5, and 6-berth layouts. All of the arrangements have been geared to the boat’s narrow beam and long ends. This makes for very workable accommodations in a seaway: grab rails are always close at hand and there’s never very far to fall. Elbow room for relaxing, dining, or gathering is at a premium, though. The five-berth plan, chosen in about one quarter of the boats built, makes, we think, the best use of the main cabin space and comes closest to the sort of “main saloon” that contemporary designs offer in a boat of this size.

The “ice box” feel of fiberglass was a worry when the switch came from wood. Hinckley’s answer was to “build a wooden boat inside the glass one.” Except for the smoothed and comfortingly painted overhead, everything below was made of or sheathed with wood. Phillipine mahogany (later replaced by Honduras) sheathed hull sides, bulkheads, and the underside of the decks so “not an inch of fiberglass shows.”

“During the mid-60’s we were building a Pilot a week,” Bob Hinckley remembers. “A big key to keeping that pace was the amount of pre-fabbing of interior elements that we did outside the boats.” The Pilot was one of the first cases in the glassboat era of keeping the quality in a boat while taking hours out of building her. It was the woodshop where most of those efficiencies were achieved.

”Superbly...” “Splendidly...” “The company has been very responsive...”

Few and far between are the Pilot owners who don’t have very good things to say about Hinckley. The excellent reputation that the folks in Southwest Harbor enjoy today began, we feel, at least in part with the Pilot. With the shift from a workmanlike wooden pleasure boat to an elegant, high quality mini-yacht, the company staked out the trail it was to follow up to the present…traditional appeal, rugged construction, focus on quality…enjoyable boats.

Hinckley also grew from being just a builder to being an outfitter, authority, and maintenance helpmeet. Take the number of Pilots (almost half) that have been returned to Southwest Harbor for Awl-Gripping, a new interior, a carbon fiber spar, and other refit items. The “family center” keeps drawing boats back and sending them forth refurbished and gleaming. And keeping the boats new is keeping Hinckley green.

Finally, take the case of the “factory installed extra.” Hinckley has definitely done the homework necessary to keep its boats outfitted with gear and equipment that suits their character as well as makes things easier for their owners. Take the modestly-priced cabin heater. How many owners would have known and cared enough to put a fireplace below on their 35-footer, but the little stoves (“They really don’t work all that well. I’d prefer an Espar heater under the cockpit seat,” Bob Hinckley says) are just one of the many added elements that gave this classy little auxiliary her sparkle when she first arrived. Almost 40 years later, while there may be better ways to stay warm below, the Pilot 35 still keeps a lot of her glow.

Practical Sailor, July 1, 2001
